Dostępność: Dostępny
Czas wysyłki: 1 - 3 dni
Koszt wysyłki: od 0,00 zł
Stan magazynowy: 3 szt.
Stan produktu: Nowy
Kupując ten produkt otrzymasz od nas 15990 punktów które będziesz mógł wykorzystać na zakupy w naszym sklepie. Dotyczy to tylko Klientów zarejestrowanych w naszym sklepie.

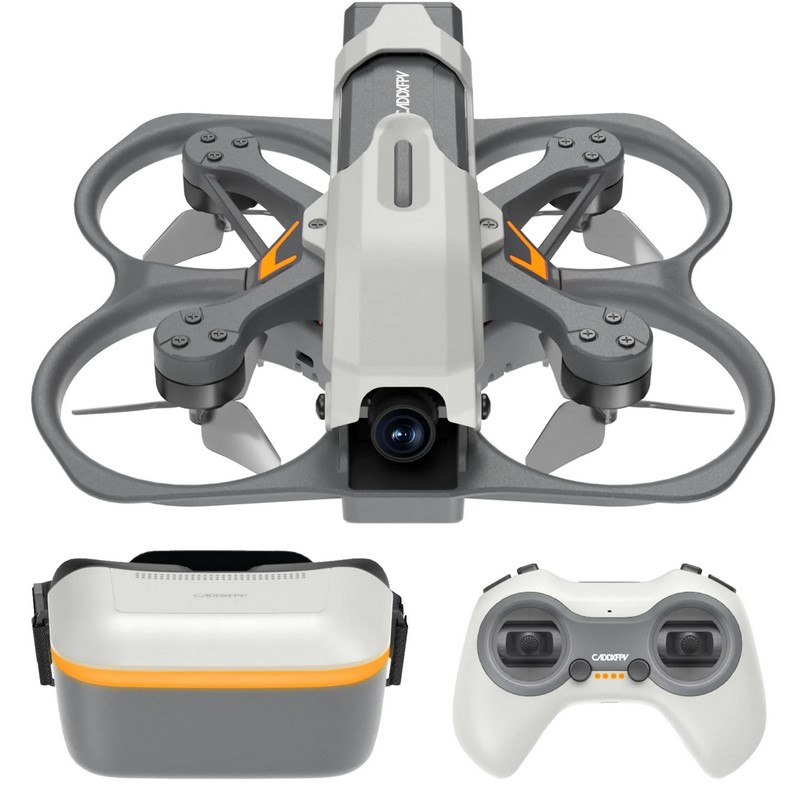

At only 6g, this ultra-light digital HD VTX makes your drone lighter, its signal stronger, and its flight smoother.
High RPM and efficient power delivery ensure smooth, responsive performance with minimal delay, giving you faster launches and steady flight control.
Dive into the action with our 4.5" high-resolution FPV display. Every detail, from the sharp edges of urban landscapes to the vibrant hues of nature, springs to life with stunning clarity and rich color.
With 0.01 Lux low-light sensitivity, smooth 1080P/60FPS video, and a 147° FOV, you'll capture every detail—even in challenging light.
Strong signal, 256 GB recording, and custom diopter lenses deliver an all-day clear view. A stylish, LED-accented frame completes the immersive flight experience.
Three intelligent flight modes help you progress from simple flying to advanced maneuvers with confidence.
Optical flow enables precise indoor hovering, with a smart failsafe lock for easy emergency recovery.
Pull off flips, rolls, and 180° spins with ease for an exciting flying experience-—show off smooth tricks with minimal effort.
Powered by A-LINK ELRS, it delivers millisecond-level response, long-range performance, and strong signal penetration. It’s also compatible with popular FPV simulators like Liftoff.
Integrated safety systems protect and prolong battery life. Universal Type-C support means convenient charging on the go.
Flying anytime anywhere, ready for all your FPV adventures
| PROTOS | FC | VTX | |||||
| Flight Control | Caddx Protos Aio 1.0 | Main Control Chip | STM32-F405RGT6 | VTX Model | Ascent Lite | ||
| Video Transmission | Ascent Lite | Gyroscope | BMI270 | Image Sensor | 1 / 2.8 inch Sensor | ||
| Motor Diagonal Distance | 78mm | Barometer | SPL06 | FOV | 147° | ||
| Motor | 1102 14000KV | Onboard Receiver | ESP8285 | Ratio | 16:9 | ||
| Propeller | HQprop U40mm×3GR-PC-1.5mm | Receiver Protocol | ELRS 2.4GHz | Resolution | 1080P 60FPS;720P 60FPS | ||
| Weight | 104.4g±1.5g | ESC Protocol Compatibility | Bluejay / BLHeli-S Optional | Built-in Storage | N/A | ||
| Dimensions | 110x102.8x41mm | ESC Maximum Current | 12A (Single Channel) | Max Transmission Range | Max 3km | ||
| Flight Endurance | 8.5min ±0.5min | Latency | Average delay 35ms | ||||
| RC Receiver | ELRS 2.4GHz | Power | 25~100mW |
| Ascent Goggles | |
| Communication Frequency | 5.725-5.850GHZ |
| Transmit Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot |
| Transmission Resolution | 1080P60FPS, 720P60FPS |
| Code Rate | Max 50 Mbps |
| Minimum Latency | Average 32ms |
| Average Gain | 4.9dBi |
| Polarization | LHCP |
| Transmission Distance | >4km |
| Channel | 8 |
| Screen Resolution | 1920*1080 / 60Hz |
| Screen Material | LCD |
| Screen Size | 4.5 Inch |
| Wide Voltage Input | 6V~25.2V (2S~6S) |
| SD Card Slot | Support 256G |
| CADDXFPV Alink | |
| Main Control Chip | AT32 F413RCT7 |
| RF Module | ELRS 2.4GHZ |
| RF Protocol | CRSF |
| Max RF Power | 100mW (20dB) |
| Number of Available Channels | 10 Channels (including 4 joystick channels) |
| Joystick Type | Full-Bearing Hall-Sensor Joystick Assembly |
| Function Switch | 1 x Latching Button / 2 x Momentary Buttons / 2 x 3-Position Toggle Switches / 1 x Scroll Wheel |
| Status Indicator Module | 4 x Status Indicator LEDs / Buzzer |
| Charging & Communication Interface | USB-Type C |
| Battery Specification | Lipo 1s 1000mAh |
| Max Charging Power | 5V / 1A / 3.50W |
| Operating Voltage Range | DC 3.50V~4.20V |
| Dimensions | 158mmx108mmx58mm |
| Weight | 180g±5g |
| 2S Charger | 2S Battery | |||
| Name | 2S Charger | Name | 2S Battery | |
| Display | LEDx4 | Battery Type | Li-ion (Lithium-ion Battery) | |
| Channel | 3 (Sequential Charging) | Battery Capacity | 840mAh | |
| Function Selection | Charging, Storage | Battery Specification | 2S1P (2 Cells in Series, 1 in Parallel) | |
| Battery Type | Li-ion 2S 840mAh Battery | Discharge Rate (C-Rate) | 15C | |
| Input Voltage | 12‒15V (PD Input, 5V Adapter Not Supported) | Maximum Power | 6.384Wh | |
| Output Voltage | 8.7V | Voltage Range | 6.80V~8.70V | |
| Input Current | Max.3A | Max Charging Voltage | 8.5V | |
| Charging Current | Max.3A | Charging Method | 2S Charger | |
| Balancing Current | Max.0.21A | Charging Time | ≤20min | |
| Charging Power | Max.25W | Protection Mechanism | When the voltage of a single cell drops below 2.8V, battery lock protection is triggered and charging is required to reactivate |
|
| Discharging Power | Total Power: 5W (Max 1.6W per Channel) | Dimensions | 77.5x24x21mm | |
| Interface | Type-C | Weight | 41.9g±0.5g | |
| Operating Temperature | -10~45℃ | |||
| Storage Temperature | -20℃~60℃ | |||
| Dimensions | 94x63x39.1mm | |||
| Weight | 65±0.5g | |||
