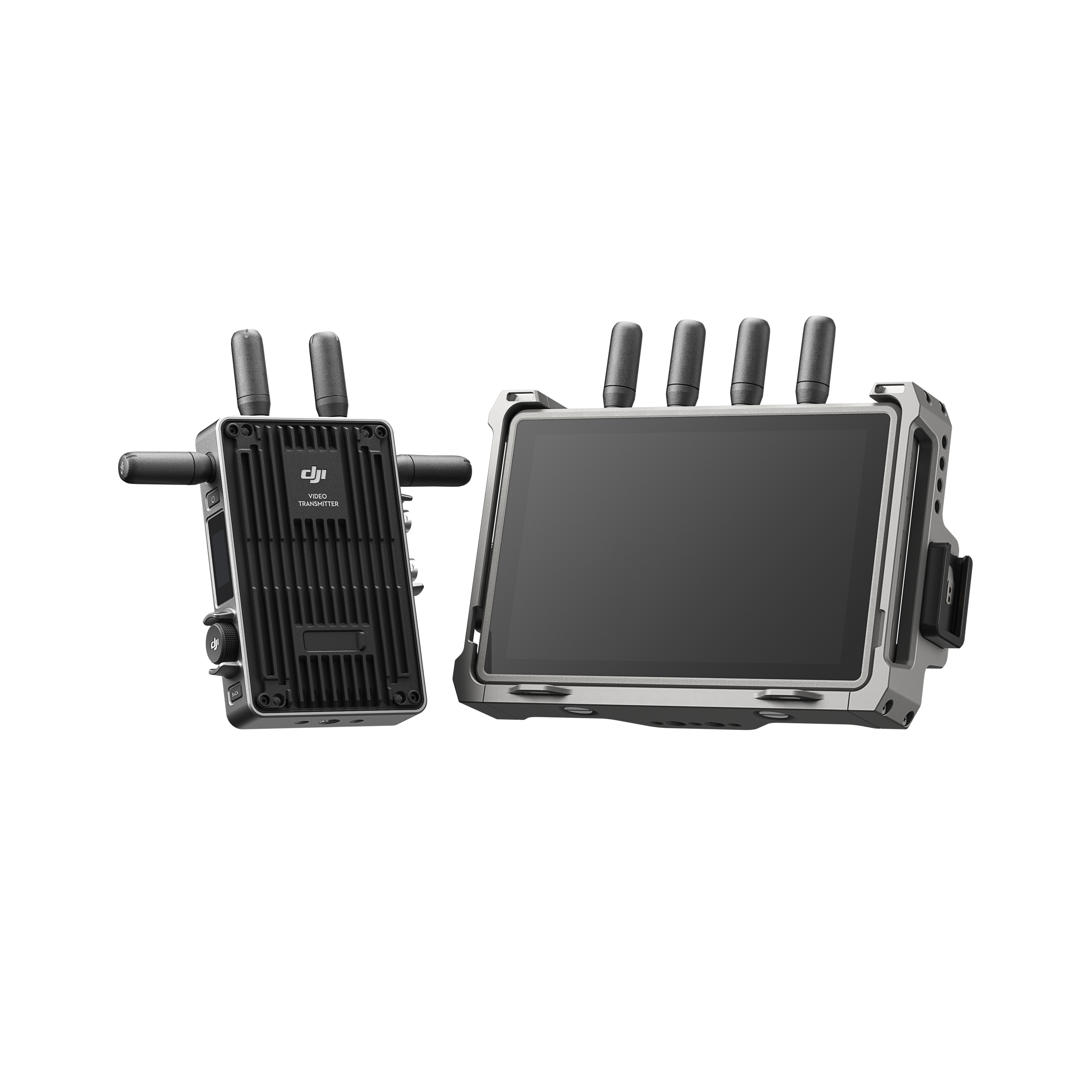

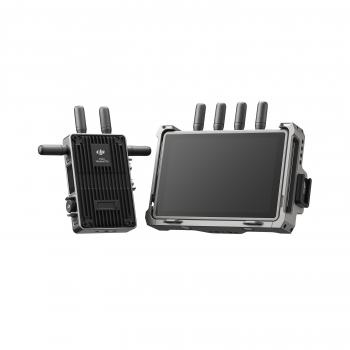

System transmisji obrazu DJI Transmission z ekranem

Specifications

• Weight

• Video Transmitter Weight: Approx. 350 g / 0.77 lbs (excluding antennas)
  High-Bright Remote Monitor Weight: Approx. 727 g / 1.6 lbs (excluding antennas)

• Dimensions

• Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
  High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)

• Operating Frequency

• Non DFS Frequency Band:
  2.4000-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

  DFS Frequency Band:
  5.250-5.350 GHz
  5.470-5.600 GHz
  5.650-5.725 GHz"

• Transmitter Power (EIRP)

• 2.4000-2.4835 GHz:
  <33 dBm (FCC)
  <20 dBm (SRRC/CE/MIC)

  5.150-5.250 GHz:
  <23 dBm (FCC/SRRC/MIC)

  5.250-5.350 GHz:
  <30 dBm (FCC)
  <23 dBm (SRRC/MIC)

  5.470-5.600 GHz, 5.650-5.725 GHz:
  <30 dBm (FCC)
  <23 dBm (CE/MIC)

  5.725-5.850 GHz:
  <33 dBm (FCC/SRRC)
  <14 dBm (CE)

• Max Bandwidth

• 40 MHz

• Max Bitrate

• 50 Mbps

• Power Consumption

• 11 W

• Power Supply Voltage

• 6 to 18 V

• Output Voltage

• Power Output Port: 6 to 18 V

• Operating Time

• Video Transmitter: 3 hours 40 minutes ^[1]
  High-Bright Remote Monitor: 2 hours ^[1]

• Input Video Format

• 3G SDI: YCbCr 4:2:2 10-bit
  HDMI RGB 4:4:4
  1080p: 23.98/24/25/29.97/30/50/59.94/60fps
  1080i: 50/59.94/60fps
  720p: 50/59.94/60fps

• Output Video Format

• 3G SDI: YCbCr 4:2:2 10-bit
  1080p: 23.98/24/25/29.97/30/50/59.94/60fps
  1080i: 50/59.94/60fps
  720p: 50/59.94/60fps

• Input Audio Format

• SDI embedded, HDMI embedded

• Output Audio Format

• PCM

• Video Transmission System

• O3 Pro

• Max Video Bitrate

• 50 Mbps

• Video Transmission Latency

• 68 ms ^[2]
  100 ms ^[3]

• Video Coding Format

• H.264

• Max Transmission Distance

• 6 km (FCC) ^[4]
  4 km (CE/SRRC/MIC) ^[4]

• Max Bandwidth

• 40 MHz

• Operating Temperature

• -10° to 45° C (14° to 113° F)

• Mirror Control Mode Supported Camera Models

• ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).

Other

• Notes

• 1. Measured at room temperature (25° C/77° F) with a fully charged WB37 battery.
  2. Measured when shooting 1080p/60fps video.
  3. Measured when shooting 1080p/24fps video.
  4. In open environments free of obstructions or interference.
