Silnik bezszczotkowy BetaFPV LAVA Series 2006 2400KV

LAVA Series 2006 Brushless Motors is designed for the 6S 3.5'' quads, with high agility and acceleration. Combined with GemFan D90S 3-Blade Propellers (1.5mm Shaft) and the F722 35A AIO V2 FC, it could offer pilots flexible control. Easily meet competitively challenging drone competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading the 6S 3.5'' quads to a smoother and more stable flight level.

Bullet Point

• Specifically designed for 6S 3.5'' quads, this motor offers high agility and acceleration and features a high-performance 2400KV motor. Pilots enjoy flexible control and get more room for additional payload capacity.
• These high torque motors feature GemFan D90S 3-Blade Propellers (1.5mm Shaft) to minimize prop wash oscillation and deliver lightning-fast responses, resulting in heightened thrust and power.
• Perfectly matched with the F722 35A AIO V2 Flight Controller, this motor will bring pilots a powerful flight footage shooting experience with a 6S battery.

Specification

• Items: LAVA Series 2006 Brushless Motors
• Motor KV: 2400KV
• Maximum Power: 563.82W
• Maximum Current: 23.49A
• Color: Gray mixed orange

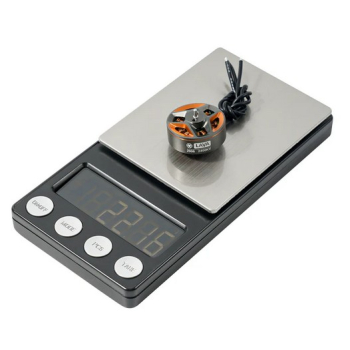

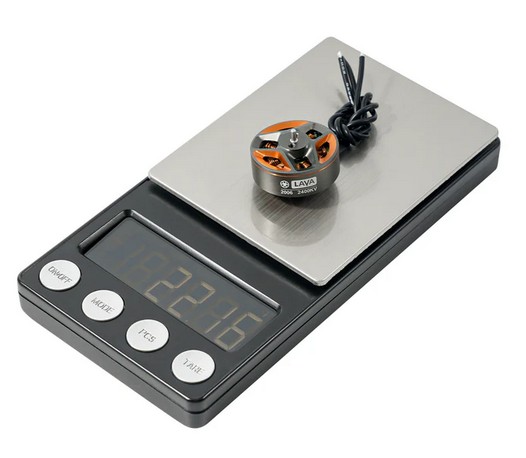

• Weight: 22.2g
• Shaft Diameter: ø1.5mm
• Shaft Length: 3.5mm
• Wire Specification: 22AWG
• Wire Length: 100mm
• Motor Mounting Hole Size: 4*M2 Ø12mm
• Propeller Mounting Hole Size: 2*M2 Ø5mm

Recommended Parts

• FC: F722 35A AIO V2 FC
• Props: GemFan D90S 3-Blade Propellers(1.5mm Shaft)
• Battery: LAVA Series 6S 1100mAh LiPo Battery, 6S 1050mAh~1400mAh Battery
• Quadcopter: Pavo35

Package

• 1 * LAVA Series 2006 Brushless Motors
• 4 * Hex Flat Head Screw M2*5
• 4 * Hex Flat Head Screw M2*7
