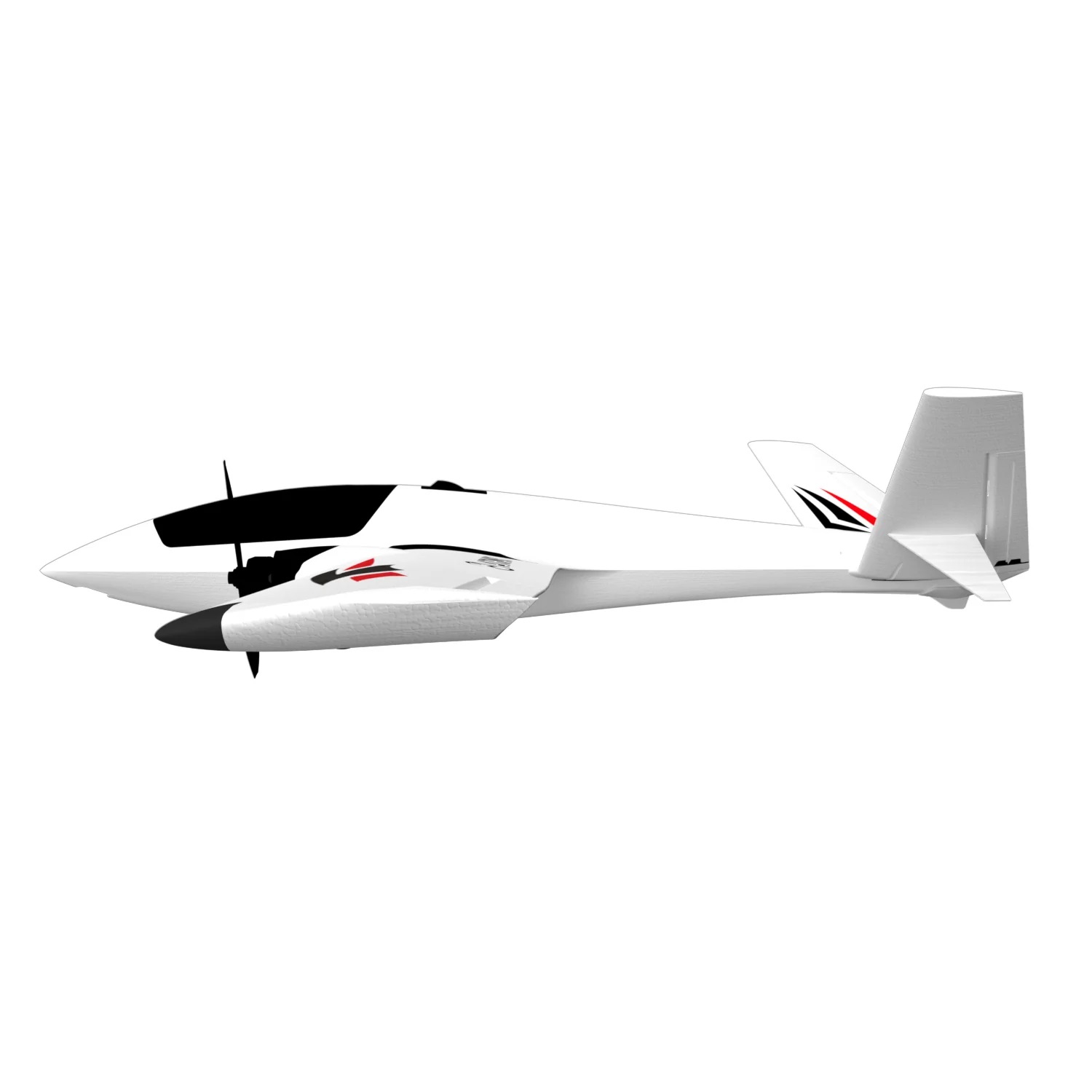

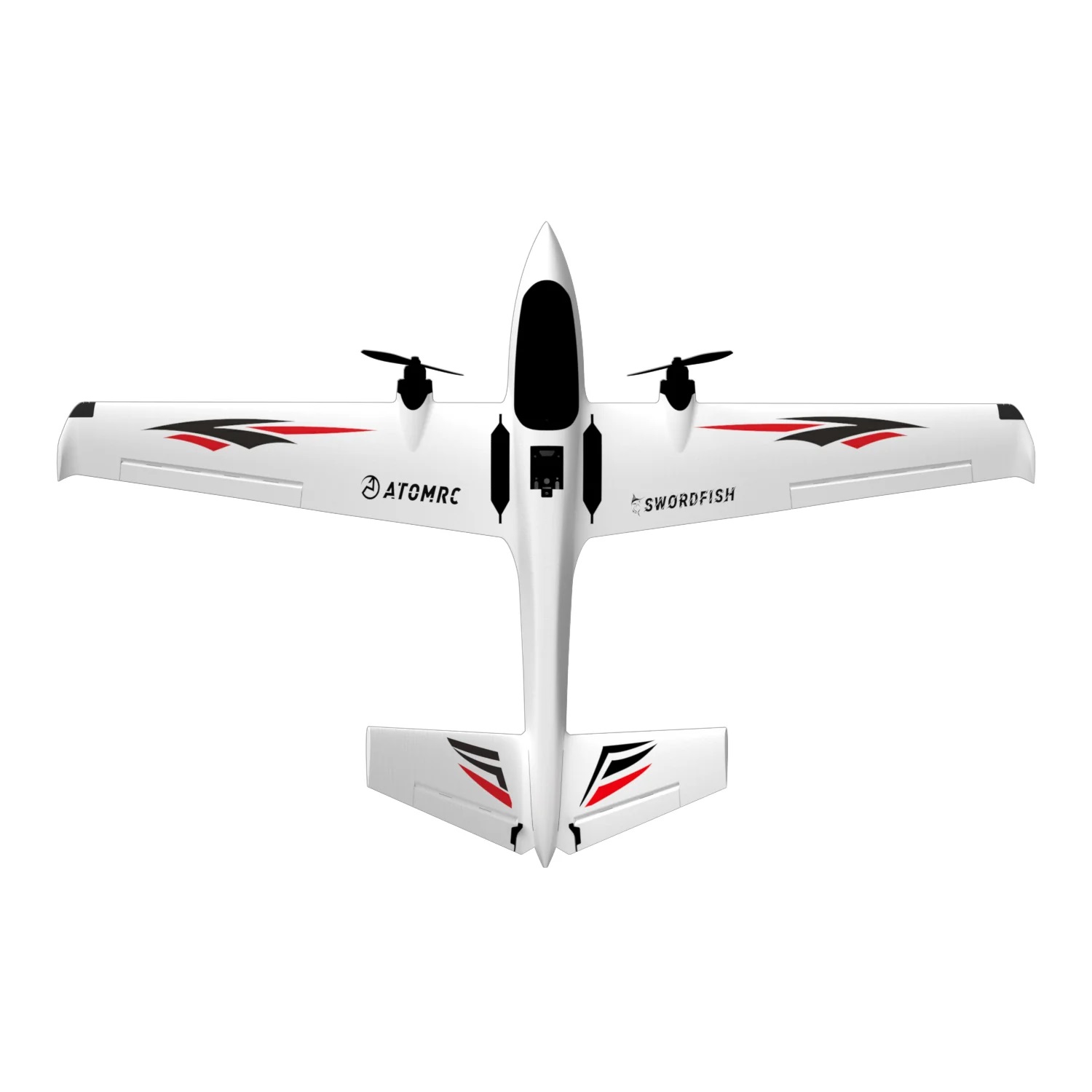

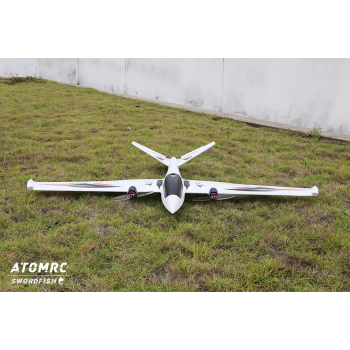

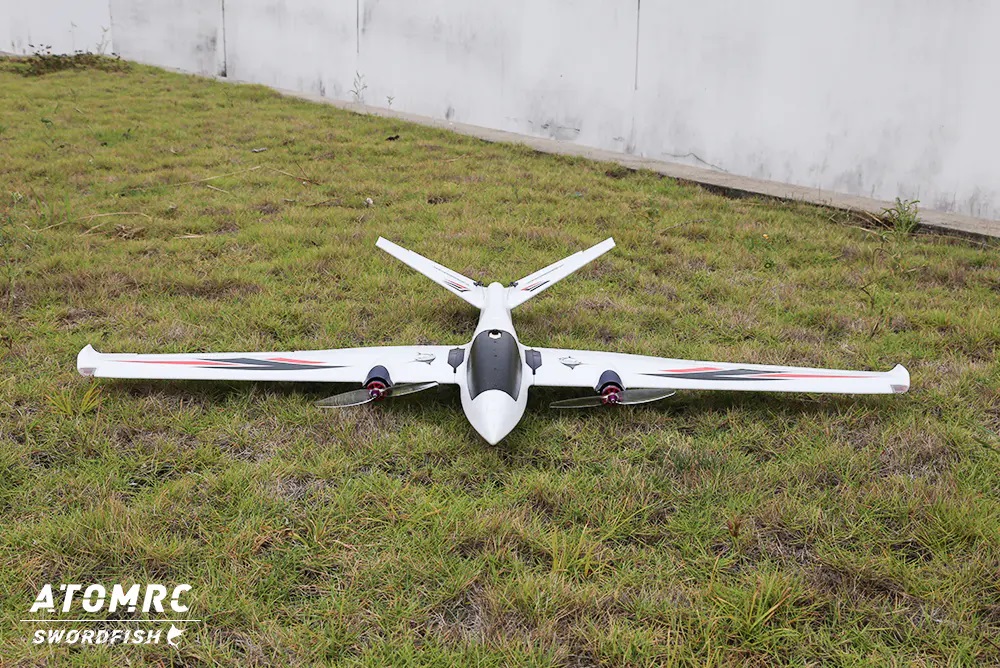

Samolot Atomrc Swordfish 1200mm pod FPV

Samolot Atomrc Swordfish 1200mm pod FPV

ATOMRC Swordfish FPV RC Plane Fixed Wing Flying Aircraft Build for FPV, Intelligence flight. -Flight controller have two firmware INAV or Arduplane, both firmware already pre-turned for the plane. RTH and RTH FPV version are plug and play, use just plug theire receiver and battery, plane is ready to go just like racing drones, no need glue or installed the electronics.

Arduplane version is also available, we can upload arduplane parameter setting on our web, you just need flash the arduplane firmware, load the settings.

SF1200NAVIAP20221205



Wersja RTH zawarta:

1x Pre-zaklejony śmigłowiec

1x Płyta drewniana

1x Śruby i nakrętki

1x Naklejka

1x Instrukcja obsługi

1x Światło lotnicze

2x ATOMRC 2306 1700KV Silnik

2x ATOMRC BLS 30A 2-4S ESC

4x ATOMRC 9g Serwo

4x 7042-2 Śmigło

1x ATOMRC F405 NAVI kontroler lotu

1x Moduł GPS BN220

Specifications:
Wingspan:1200mm
Length:810mm
Material: EPP
WingArea:15.35 dm²
Package size:815*220*185mm
Recommend motor: 2004~2306
Recommend prop: 7042-2
Recommend battery: 4s 5000mAh/21700 1P4s
Servo: 4Pcs 9g servo
Item weight: 1.4kg
Package size: 84*25.2*22.5 cm

Easy for beginners, pre turned and pre-installed electronics.

Auto launch mode, return to home, circle mode
Need install the ATOMRC F405 NAVI flight controller, the RTH and RTH+FPV have intelligence flight mode.

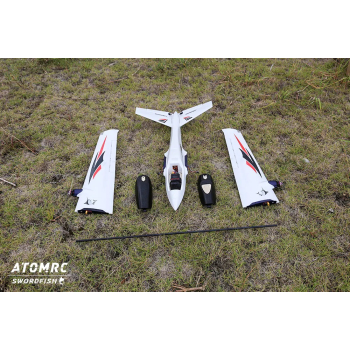

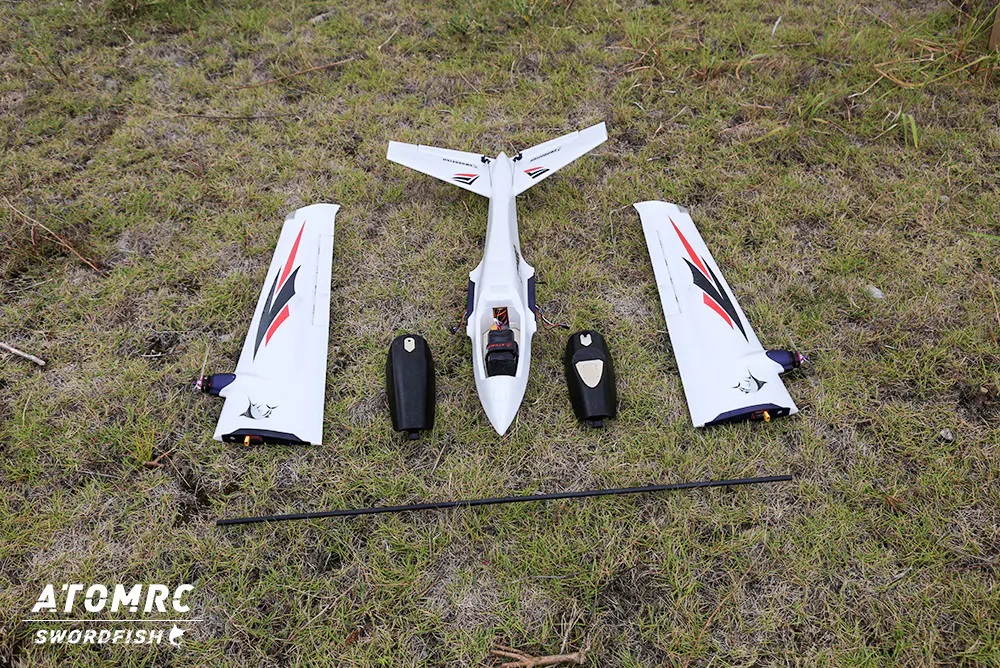

Quick Release connector:
The quick release connector using soft connection, solved the disconnection from vibration or crash. Easy to install the wing and detach the wing.

Hatch Lock:
The screw and nuts are more durable and reliable than magnet, the hatch will never fall off in the air.

Carbon fiber reinforcement and plastic injection mount for tail, more rigid for high speed and landing

Precise Plastic injection parts:
The wing connector, motor mount, VTX mount, V tail base and flight light cover are using precise Plastic injection parts, more durable and light weight.

Swordfish manual
