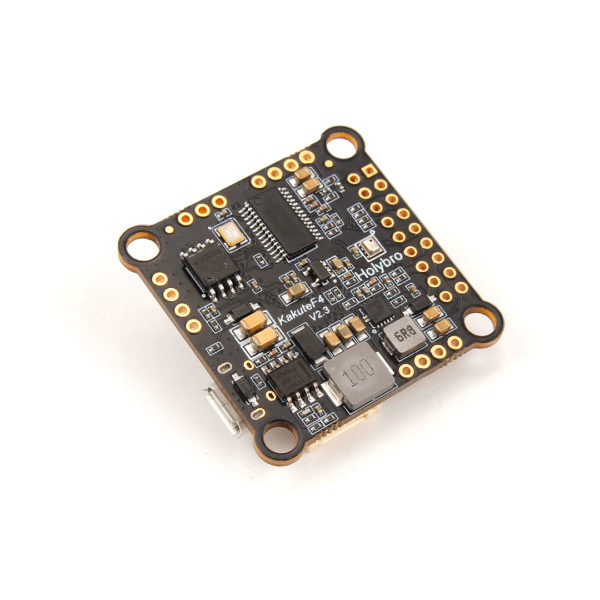

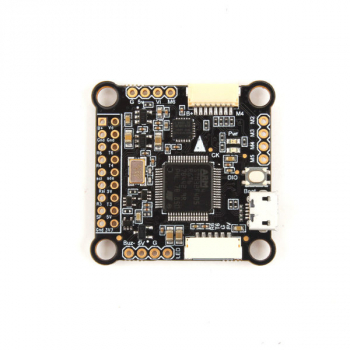

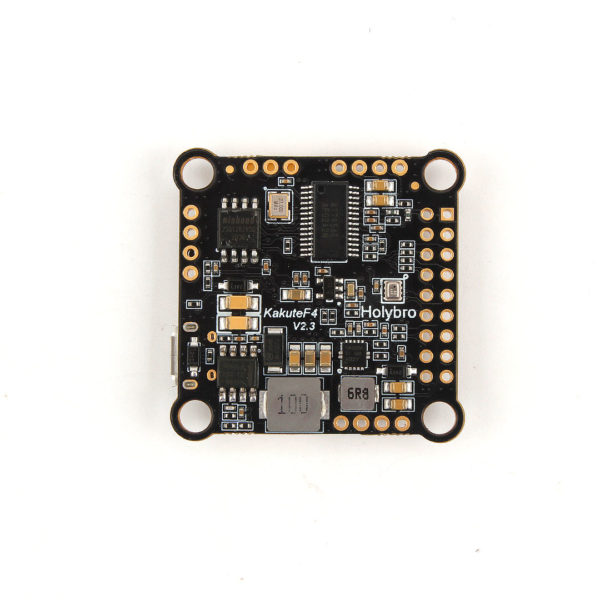

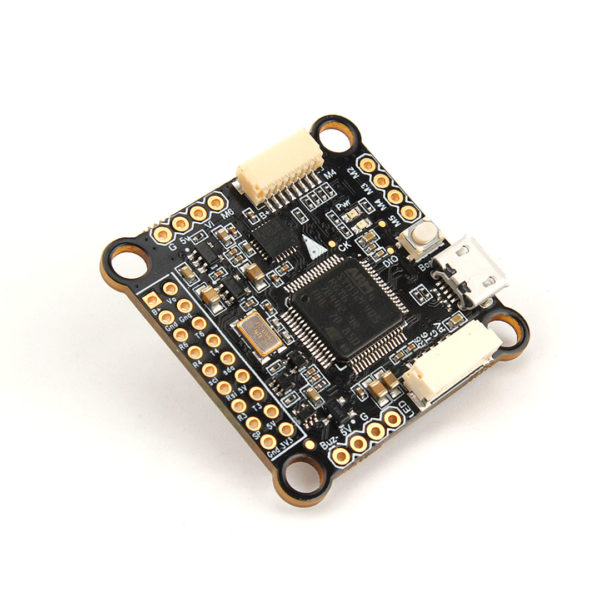

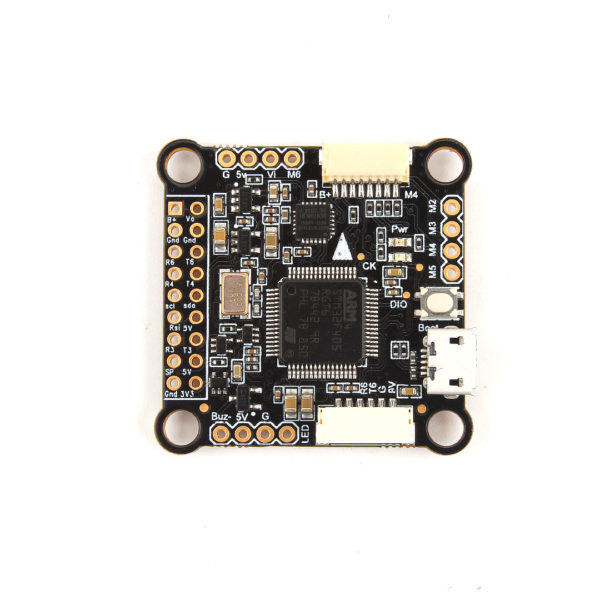

Kontroler lotu FC Holybro Kakute F4 V2.3

Features

• Supports Betaflight and Cleanflight.
• Betaflight OSD. Change PIDs, adjust common configuration parameters, and change video transmitter channel and power level, all using your transmitter sticks and goggles.
• High-performance / low-noise IMU. MPU6000 with 6-axis gyro and accelerometer.
• Ready for autonomous flight: Integrated BMP280 barometer and SCL/SDA for use with external GPS/magnetometer units.
• Dedicated bootloader button for easy firmware flashing.
• Low-profile design fits into even very compact frames.
• Input voltage 7v to 42v. Power the board directly from the flight pack, up to 6S (on “B+” pad only).
• Automatic voltage monitoring. No need to run a separate vBat wire for voltage monitoring; the Kakute F4 V2 monitors voltage directly from the battery power lead.
• On-board regulators output 5v at up to 1.0 amps and 3.3v at up to 200 mA to power peripherals such as receiver, video transmitter, FPV camera, or LED strip.
• On-board regulators output 9v at up to 2A to power DJI VTX.
• 6 PIN JST GH connector for DJI VTX.
• Supports BLHeli pass-through for easy ESC upgrade and configuration.
• 2 Additional PWM output, can be used for Camera control , motor5 or motor6 after resourced.

Specifications

• MCU: STM32F405RGT6 32-bit processor
• IMU: ICM20689 (SPI)
• Barometer: BMP280
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 5 hardware UARTS (UART1,3,4, 5, 6)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
• 128 Mbit Dataflash chip for Blackbox logging
• Dimensions: 36.8×36.8x8mm
• Mounting Holes: 30.5×30.5mm(M4)
• Weight: 7.4g
