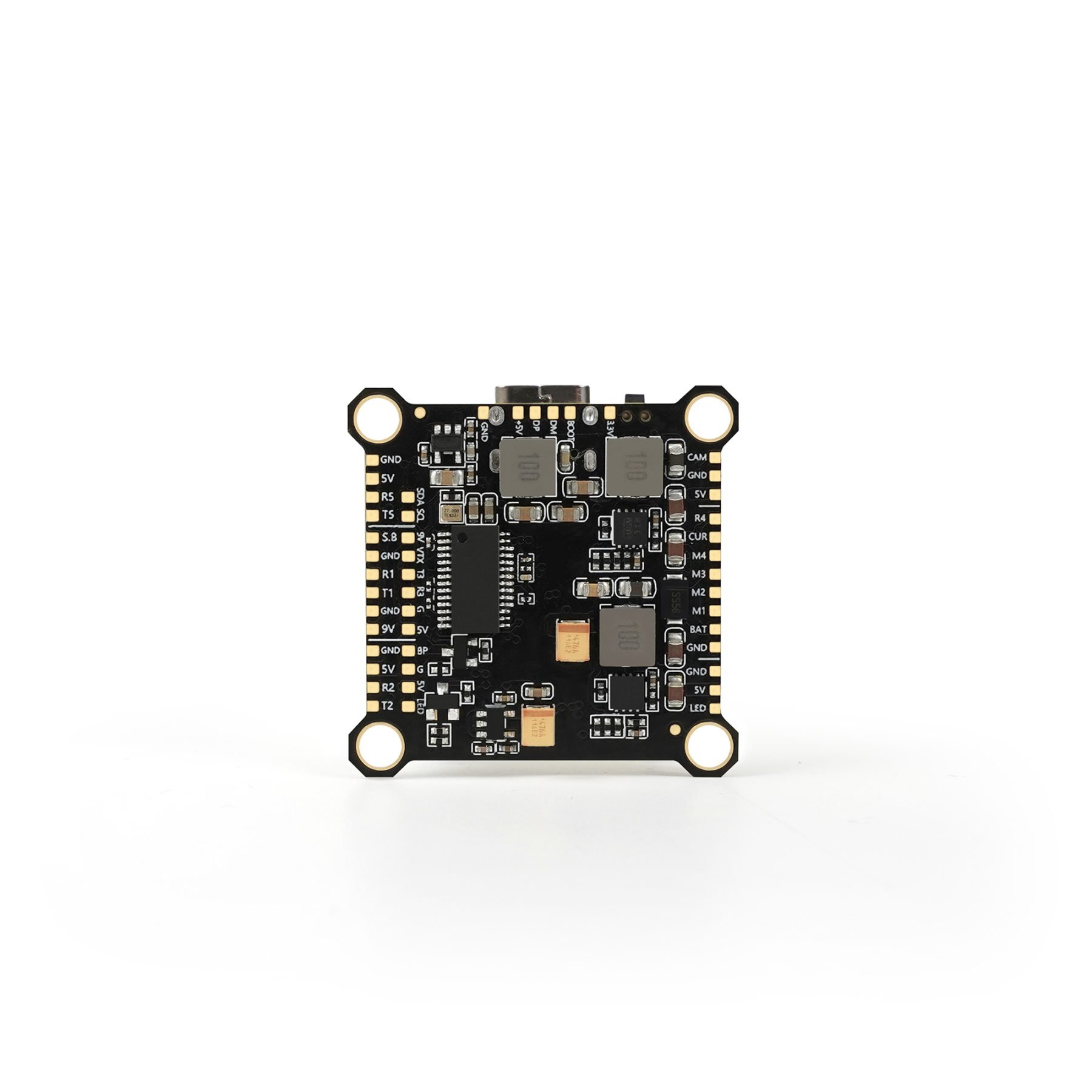

Features
- Use mainstream STM32F405 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the DJI Air Unit
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- 9V 2.5A + 5V 3A dual independent BEC
Specifications
- MCU：STM32F405
- IMU：ICM42688-P(SPI)
- Air Unit Connection：Direct plugging into DJI Air Unit
- Black Box：16M onboard
- USB Interface：Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A,9V@2.5A dual BEC
- Firmware Target：GEPRCF405
- Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
- Input Voltage：3-6S LiPo
- UART：6
- Power Filter：Integrated LC filter
- Weight：7.7g
Includes
1 x Flight Controller
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
4 x Nylon nuts
4 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
