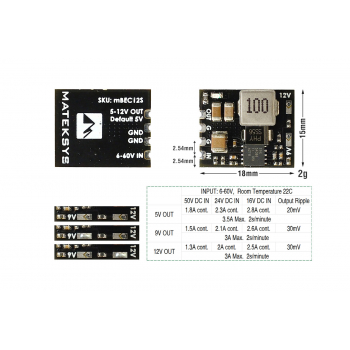

Micro BEC 6-60V to 5V/9V/12V-ADJ
- Due to shortage of chips, the voltage regulator chip has been replaced with SOP-8 package.
- PCB 1mm wider.
- Identical performance as previous version.
- Wide 6V to 60V Operating Input Range
- Start-up Voltage >=6.7V
- VOut 5V, 9V or 12V Adj. Default is 5V.
- Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
- Continuous load current: Depends on input voltage and heat dissipation.
-
| |
INPUT: 6-60V, Room Temperature. 22C, without additional heat sink |
| |
50V DC IN |
24V DC IN |
16V DC IN |
Output Ripple |
| 5V OUT |
1.8A cont. |
2.3A cont. |
2.8A cont. |
20mV |
| 3.5A Max. 2s/minute |
| 9V OUT |
1.5A cont. |
2.1A cont. |
2.6A cont. |
30mV |
| 3A Max. 2s/minute |
| 12V OUT |
1.3A cont. |
2A cont. |
2.5A cont. |
30mV |
| 3A Max. 2s/minute |
-
- Standby current: <5mA
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Short-circuit tolerant (3 seconds/minute)
- No protection for reversed input polarity
- Pins distance: 2.54mm
- Size & Weight: 18×15(16)x4.5mm, 2g
- Packing: 1pc/package
