Specifications:

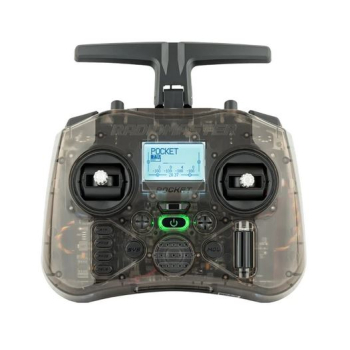

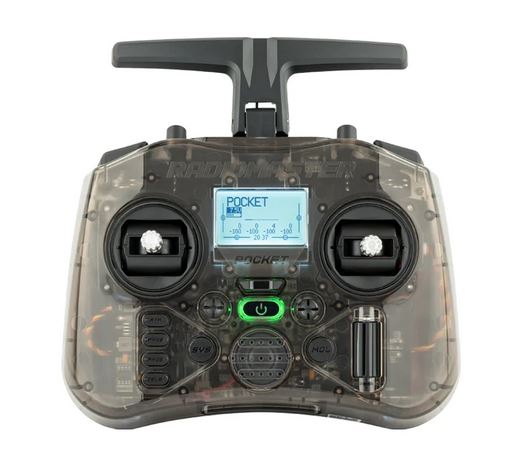

- Item: Pocket Radio

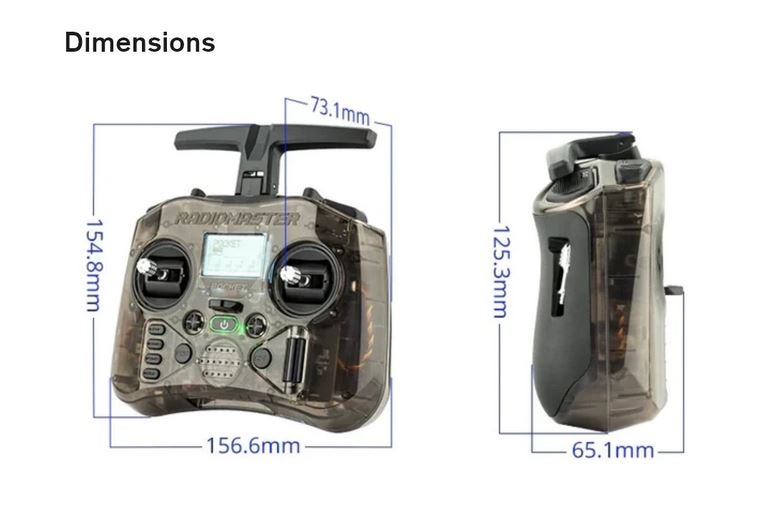

- Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）
- Weight: 288 grams
- Operating frequency: 2.400GHz-2.480GHz
- Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
- Supported protocols: Module dependent
- RF power: CC2500:100mW Max (20dBm) / ELRS FCC: 250mW Max (24dBm) / ELRS EU-LBT: 100mW Max (20dBm)
- Operational voltage: 6.6-8.4v DC
- Control distance: > 2km @ 20dBm
- Operating system: EdgeTX
- Control channels: Maximum 16 (Receiver dependent)
- Display: 128*64 Monochrome LCD
- Battery: 2pcs 18650 batteries (Not included)
- Charging: Built in USB-C QC3 Charging
- Upgradable Firmware: Via USB or the included SD card
- Gimbal: Hall-effect
- Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )
Features
- Available in ExpressLRS and MPM CC2500 versions
- Preinstalled with EdgeTX firmware

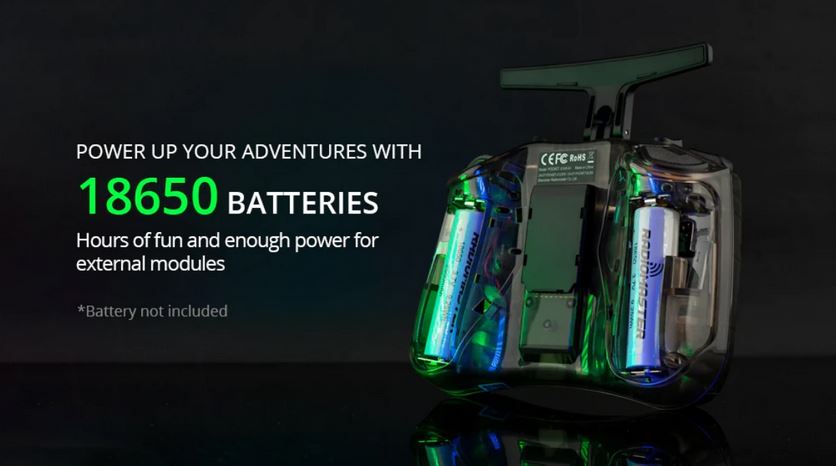

- 18650 Batteries, all the power you need for hours of fun (Batteries not included)

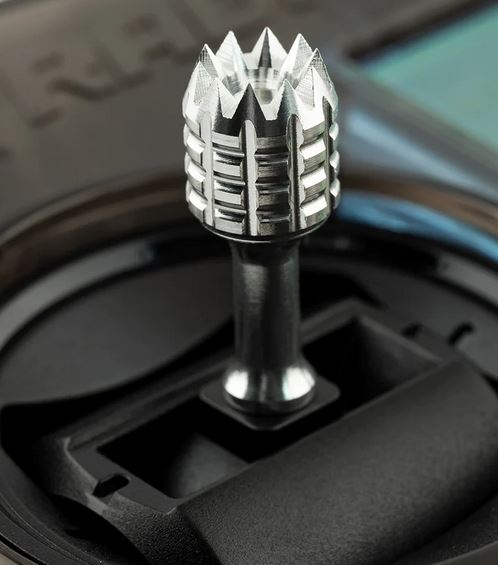

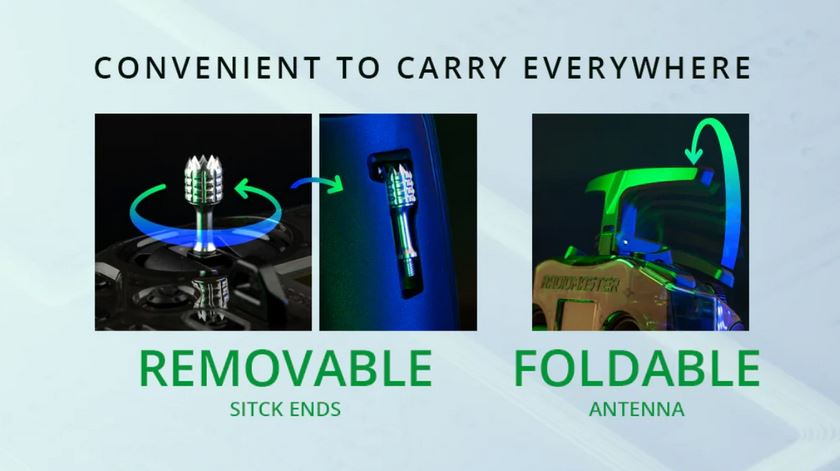

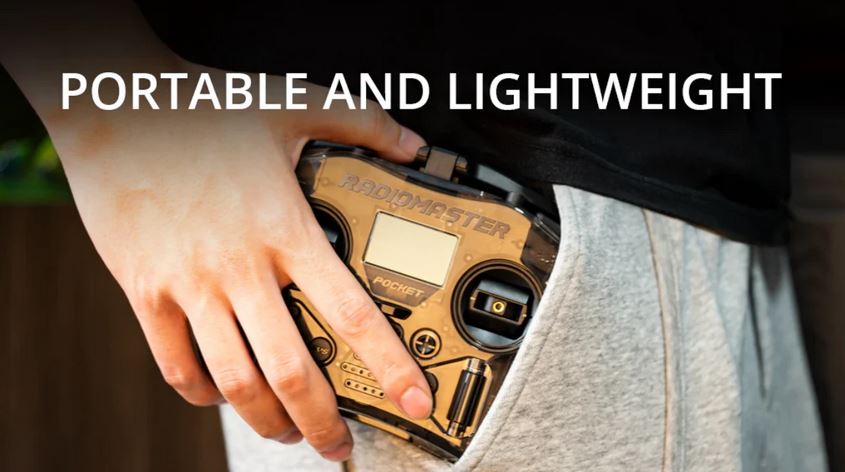

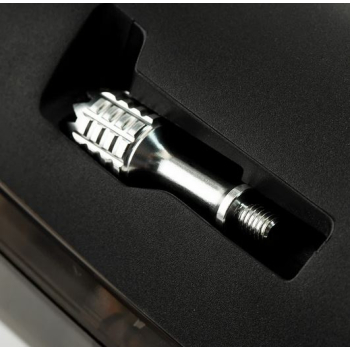

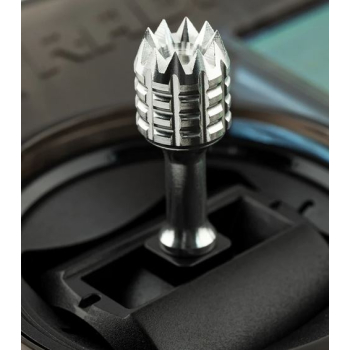

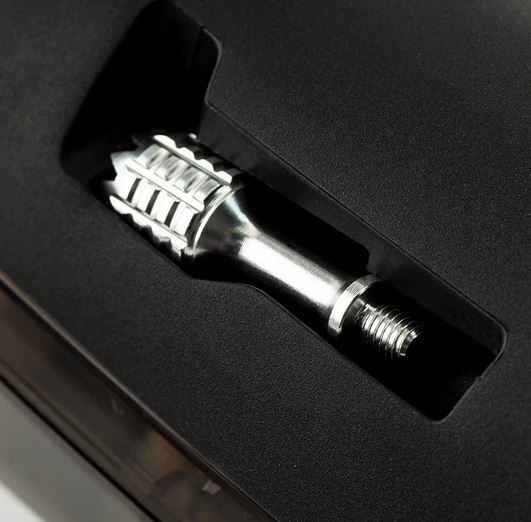

- Portable and lightweight design with removable stick ends and foldable antenna

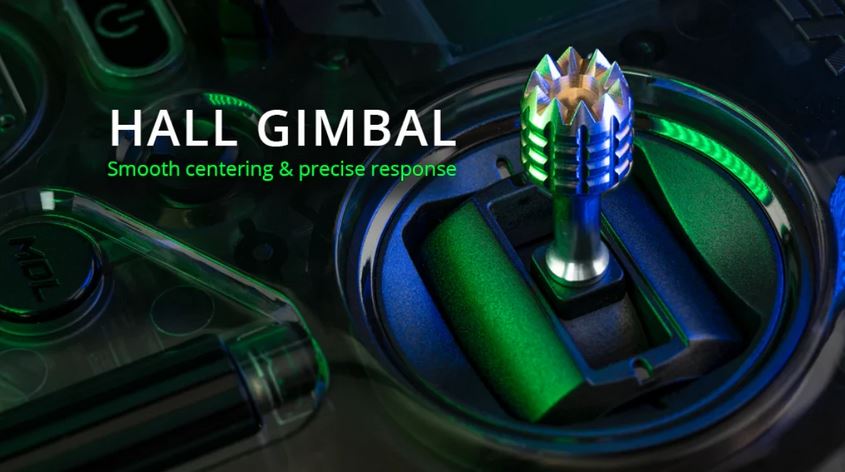

- Features hall effect gimbals as standard for smooth cantering & precise response
- Built-in LED lights help visualize your switch inputs
- Backlit LCD Screen offering a perfect balance of size and functionality

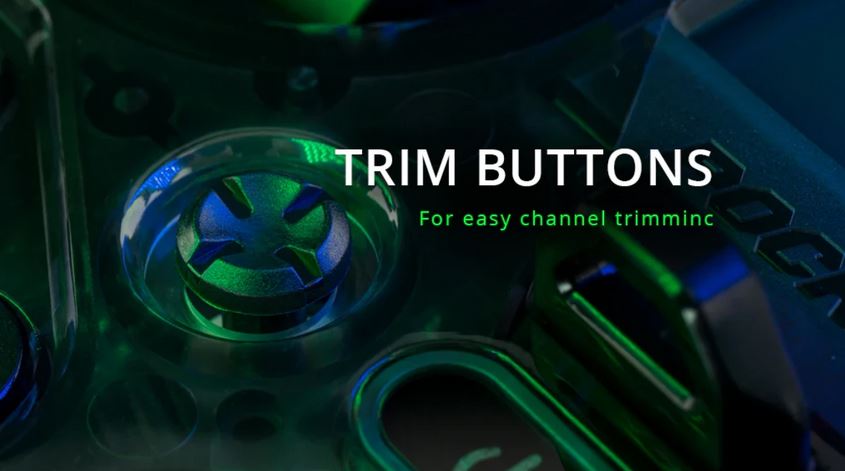

- Trim buttons for easy channel trimming

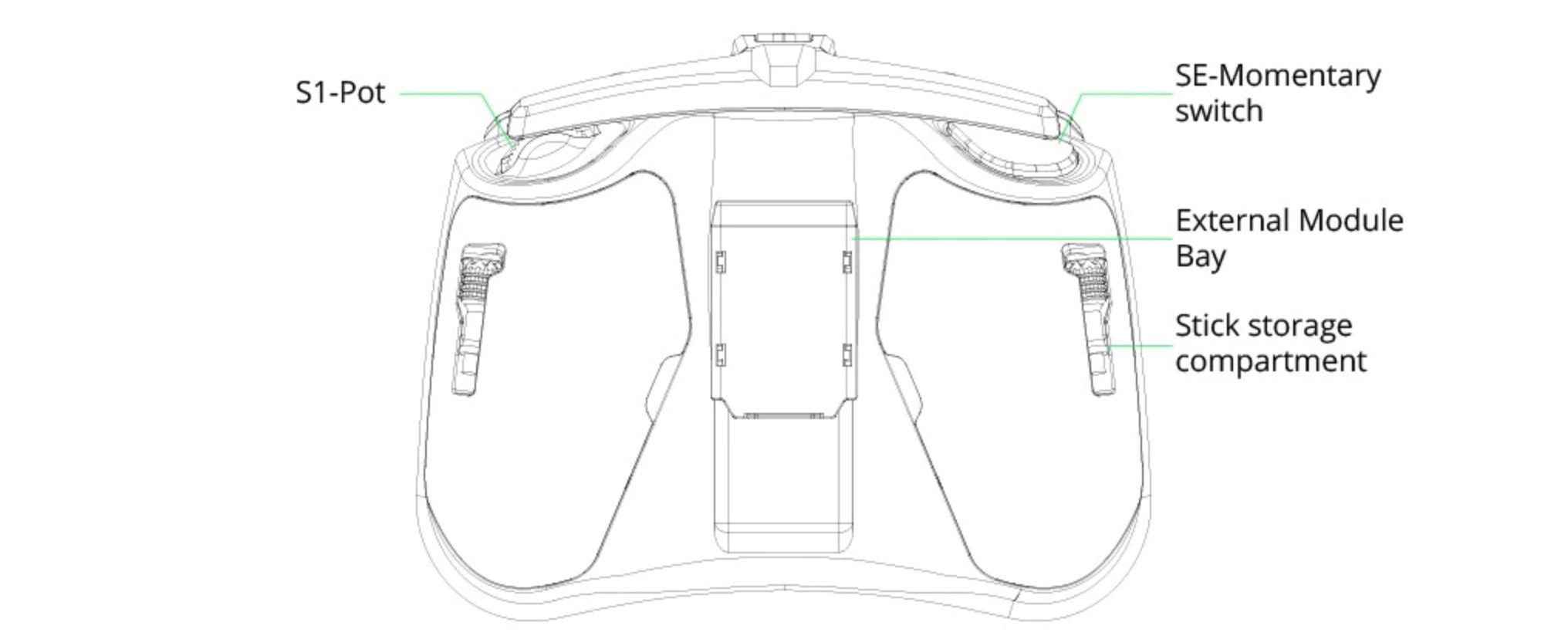

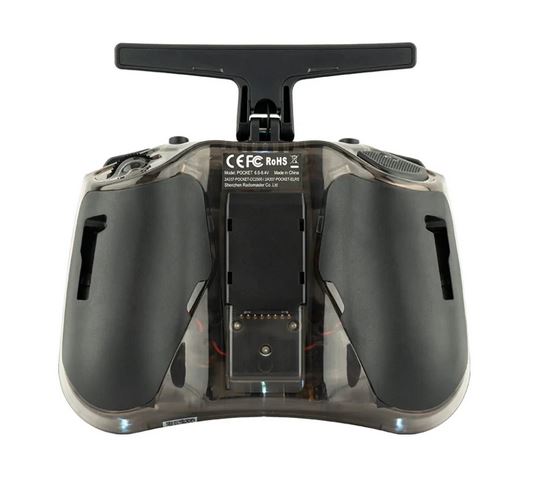

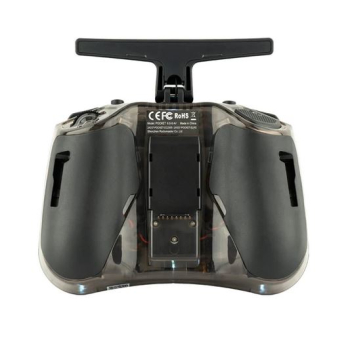

- External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer
- 2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style
Specifications
- Item: Pocket Radio
- Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）
- Weight: 288 grams
- Operating frequency: 2.400GHz-2.480GHz
- Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
- Supported protocols: Module dependent
- RF power: CC2500:100mW Max (20dBm) / ELRS FCC: 250mW Max (24dBm) / ELRS EU-LBT: 100mW Max (20dBm)
- Operational voltage: 6.6-8.4v DC
- Control distance: > 2km @ 20dBm
- Operating system: EdgeTX
- Control channels: Maximum 16 (Receiver dependent)
- Display: 128*64 Monochrome LCD
- Battery: 2pcs 18650 batteries (Not included)
- Charging: Built in USB-C QC3 Charging
- Upgradable Firmware: Via USB or the included SD card
- Gimbal: Hall-effect
- Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )
Available with ExpressLRS and CC2500 Version
- CC2500 (standard) Version supports all CC2500 protocols
- ELRS (standard) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)
About LBT version
- CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
- ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
